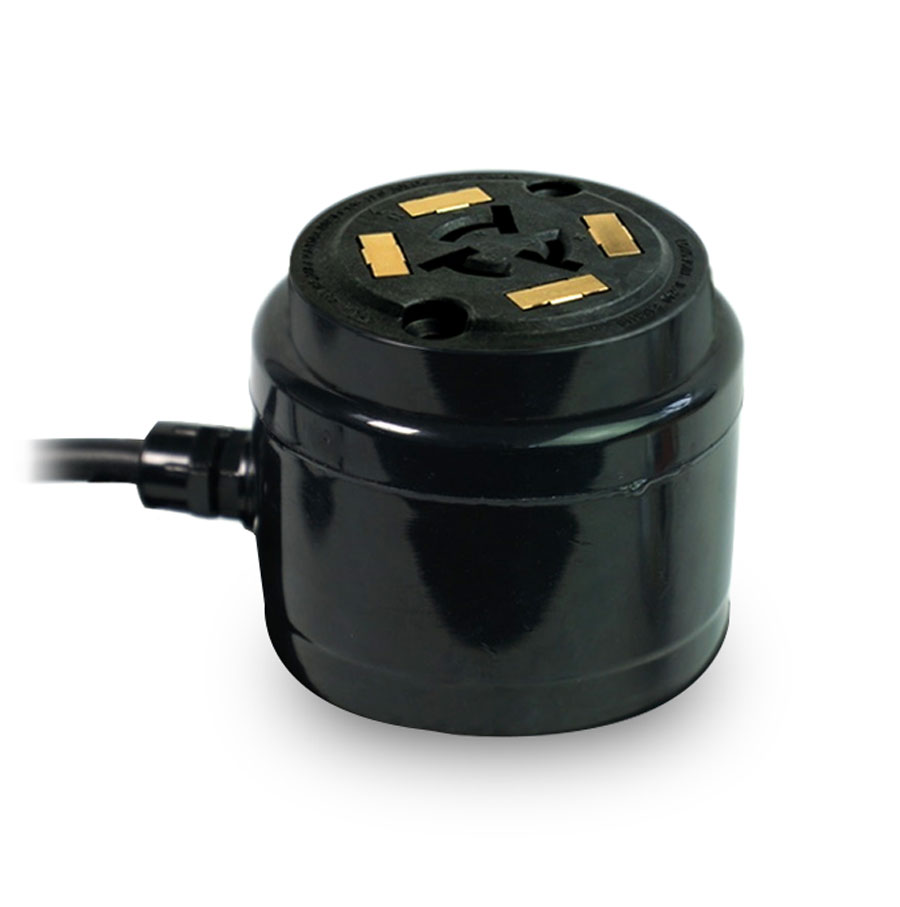

Westire Power Tap

ACCESSORIES

Providing auxiliary power to third party devices via streetlights

Application

The Power Tap provides auxiliary power from the NEMA socket direct to 3rd party lighting installations while continuing normal operation of the photocell e.g festival lighting, amenity lighting or security lighting

Reliability

Engineered in the EU with a 35 year design life. Manufactured in-house using only high quality name brand components, Westire products are renowned in the industry for their unparalleled quality and reliability.

A quick, easy and reliable way to provide mains and DC power from street lights to festival lighting.

Features & Benefits

  • Provides mains auxiliary power for 3rd party devices such as security or festival lighting.
  • Provides power to smart IoT devices by utilising street lights.
  • Simple to install.
  • Available in DC or mains.
  • Contains a 10 Amp fuse for protection of auxiliary equipment.
  • Has a built-In MOV (Metal Oxide Varistor) to meets extreme 20Kv surge
    requirements ANSI C136.10 – 2017.
  • Rated to IP 65.
  • Cable length 2 meters.
  • Additional cable length available on request.
  • Different colours available on request.
  • ROSH compliant.
  • Supplied as a Kit including the Westire Wall or Pole Mounting Bracket &
    In-Line RCD.

Technical Specifications

Dimensions77.5 mm x 73.7 mm HxW
Receptacle CompatibilityANSI C136.10 / ANSI C136.41, BS5972
Warranty5 years standard
Operating Temperature-20°C to 80°C
-4° F to 176° F
Enclosure Protection RatingUltrasonically welded UV stabilised polycarbonate enclosure providing sealing up to IP65.
Cable Length2 meters standard (other lengths available on request)
Standards ComplianceEnvironmental RoHS, EN55015, EN61547, EN6100-3-2, EN6100 -3-3
ETL UK 773, CSA 22.2,
IS EN ISO 9002: 2015,
ANSI C136.41
Enclosure MaterialFlame retardant UV stabilised polycarbonate
Mains Supply105 to 480 Volts AC - 50/60 Hz
Power Supply ConsumptionLess than 0.25 Watts
Max Load Current (A)10 Amps
Load Rating1800 VA Ballast / 1000 Watts
Surge ProtectionMOV (Metal Oxide Varistor)
Meets Extreme 20Kv Surge
Requirements of ANSI C136.10
– 2017 (Higher Surge
Protection on Request)
RCD Power3250 Watts
RCD Trip Current30mA
RCD EnclosureIP 66
