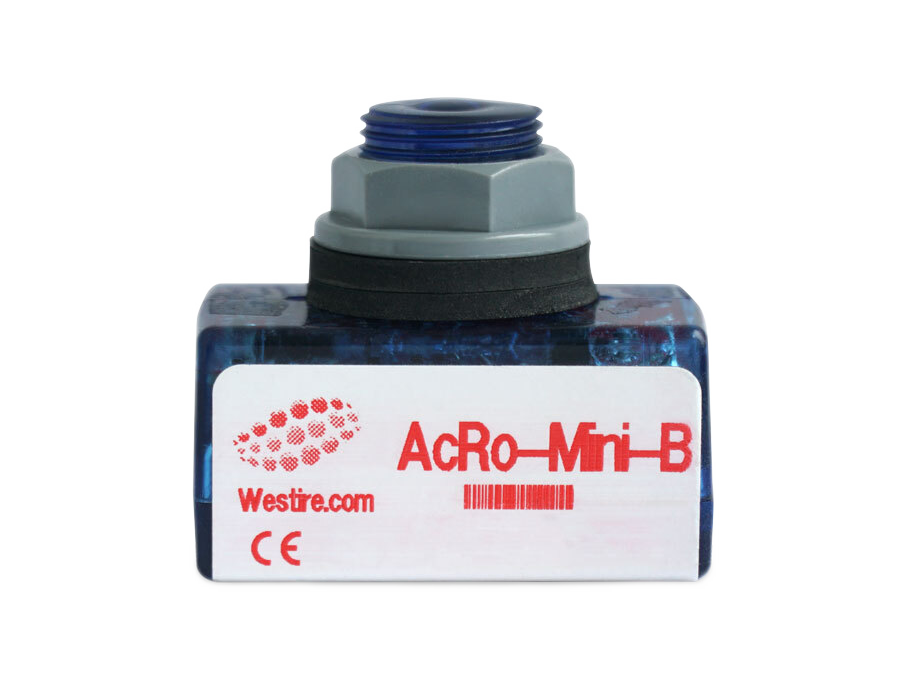

The AcRo Mini Bollard photocell has been specially developed for use in bollard lighting in urban areas.
A robust design – which includes a unique fully encapsulated light sensor and electronic circuitry – ensures that the mini photocell is impervious to moisture.
With a 15-year design life, it’s both reliable and energy efficient. And its sensor window is designed to survive all types of outdoor conditions.
An infrared-biased light sensor, a blue tinted lens and microprocessor control combine in the AcRo Mini Bollard photocell: this innovation eliminates cycling at switch-on in bollard installations.
And with high accuracy ultraviolet light detection on board, the AcRo Mini Bollard photocell eliminates spurious light switching caused by artificial light – making it ideal for use in street illuminated bollards, advertising and sign lighting in our towns and cities.
Technical Specification
Dimensions - Housing
55mm L x 33mm D x 48mm H, 2.16” L x 1.3” D x 1.88” H
Dimensions - Sensor Window
12mm Ø x 18mm (M20)
Warranty
8 years standard. 10 years available on request.
Mains Supply Voltage
200 - 260 Volts AC - 50/60 Hz.
Power Supply Consumption
Less than 0.25 Watt
Maximum Load Current (A)
10 Amps
Load Rating
1.8KVA Ballast / 1000 Watts
Operating Temperature
-20° C to +80° C, -4° F to +176° F
Enclosure Protection Rating
IP67, Fully encapsulated electronic circuitry. Fully impervious to moisture.
Standards Compliance
Environmental RoHS, EN55015, EN61547, EN6100-3-2, EN6100-3-3, IEC 61347-1:2015, Low Voltage Directive 2014/35/EU, IS EN ISO 9002: 2015, ANSI C136.24 2004
Switch 'On' light levels
10 to 120 Lux - 1 to 11 fc ± 0.025
Switching Ratio
1:0.5 to 1:1.5
Ambient Light Sensor
Colour corrected photodiode + amplifier
Switching Time Delay
25 Seconds or as specified
Switching Options
Dusk to Dawn. Part night option available.
Need high quality, reliable and accurate mini photocells for bollard, sign and warning sign nighttime illumination? Simply complete the form and one of our team will be in touch.
