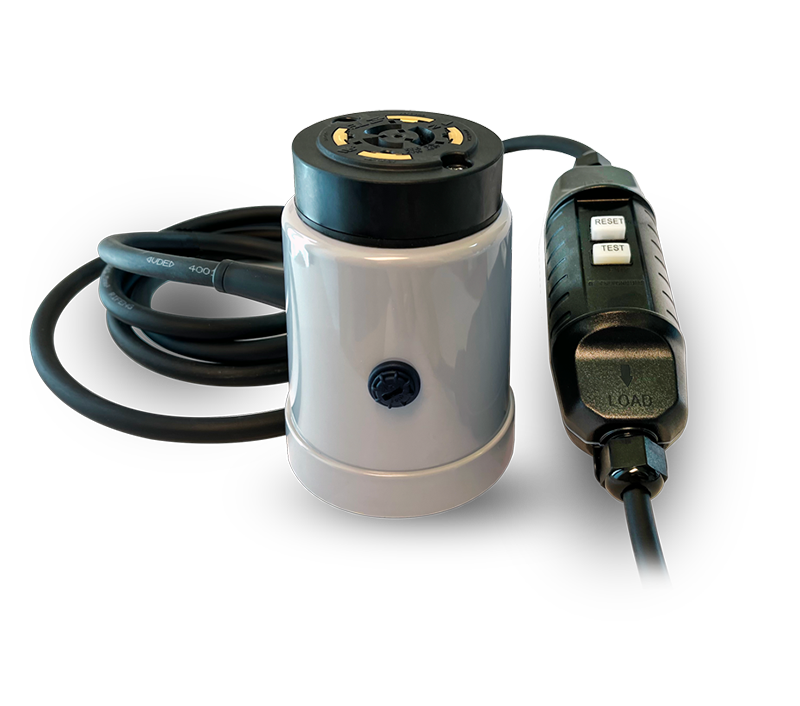

Westire Mains Power Tap
Power Tap
The market’s most versatile method of providing mains power to outdoor devices via streetlights, delivering auxiliary power to third-party equipment through the luminaire’s ANSI/NEMA receptacle
Simple to install

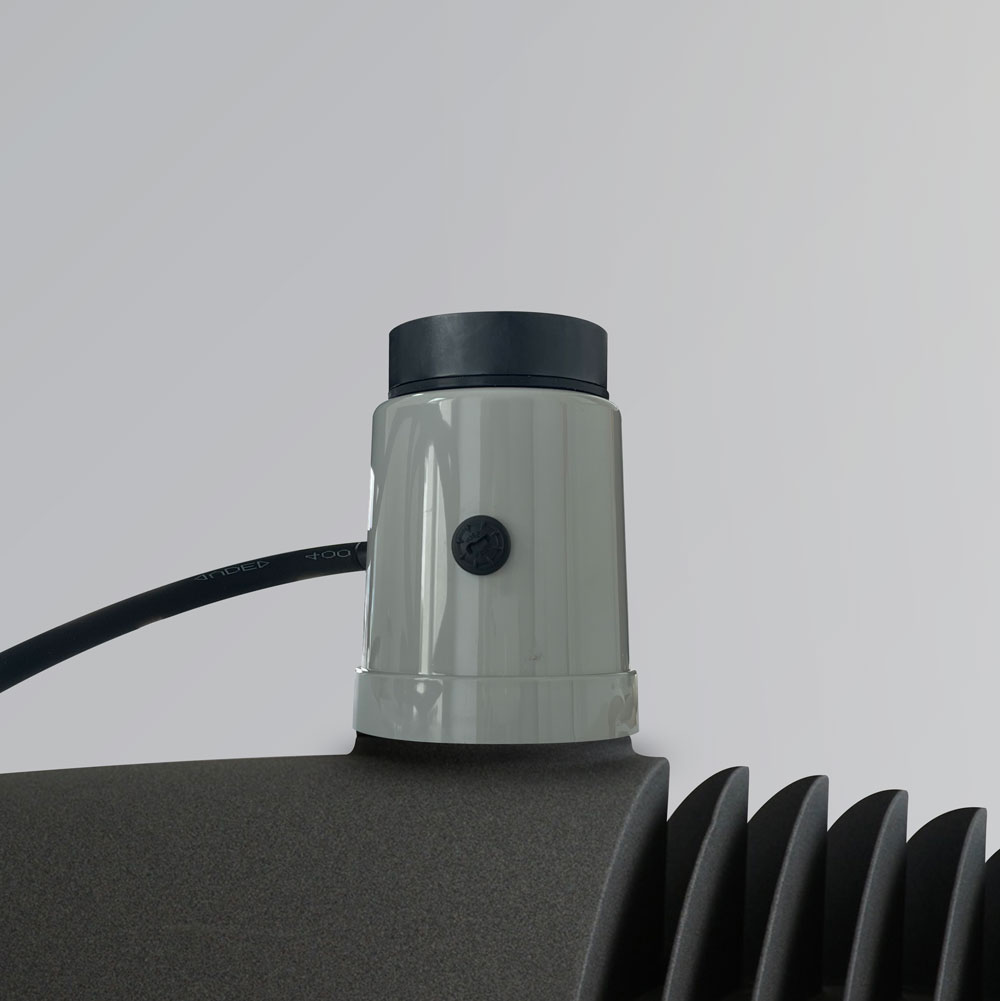

- Remove the photocell from the NEMA/ANSI socket and insert the power tap.
- Insert the removed photocell back into the power taps own NEMA/ANSI socket.
- Connect the power taps cable and an in-line RCD to the auliliary device requiring the supply
A simple, reliable way to deliver auxiliary power from streetlights to 3rd party devices, or festive lighting without interrupting photocell operation.
Features & Benefits
- Ideal for the supply of temporary mains power
- Powering of smart IoT devices utilising streetlights
- Supplying power to festive, amenity or security lighting
- External easy to access fusing, protecting auxiliary equipment
- Supplied with cable lengths of 2 meters standard, other lengths available on request
- Designed to meet water and dust tight rating of IP65
Technical Specifications
| Dimensions | 117 mm (H) x 84 mm (W) 4.6" (H) x 3.3" (W) |
| Warranty | 5 years standard |
| Cable Length | 2 meters standard |
| Operating Temperature | -20°C to 80°C -4° F to 176° F |
| Power TapReceptacle | Designed to BS5972 & ANSI C136.41 |
| Connecting Pins | Designed to BS5972 & ANSI C136.10 |
| Power Tap Enclosure Materials & Sealing | UV stabilised polycarbonate sealed to IP65 |
| Mains Supply | 105 to 480 V AC 50/60Hz |
| Max Load Current | 10 A |
| Fusing | 10 A optional |
