Power Over Ethernet (PoE) Power Tap

The Westire PoE Power Tap is a versatile 7-pin NEMA/ANSI solution that delivers reliable PoE directly from your streetlights ANSI/NEMA socket/receptacle to LoraWAN and other similar base stations, without interrupting the streetlight and photocell operation.

The PoE Power Tap is a self-contained module within the standard Westire Power Tap, requiring only one external component to provide a simple and cost-effective power source for a wide range of Powered Devices (PDs).

Overlay Dots

Tap into Street Light Power Supply

A single-channel Power Sourcing Equipment (PSE) module, our PoE Power Tap has been designed to provide power to pre-enabled devices across a wide range of power levels, from 15.4W (IEEE 802.3af) up to 75W proprietary power levels. It is aimed at a wide range of applications requiring PSE functionality to deliver PoE power, directly from streetlights.

You can simplify power supply to additional transmitting devices by tapping into the existing ANSI/NEMA socket/receptacle infrastructure of streetlights with our PoE Power Tap. This leads fast and streamlined installations of town and city radio transmitter base stations and reduced cable clutter on our streets.

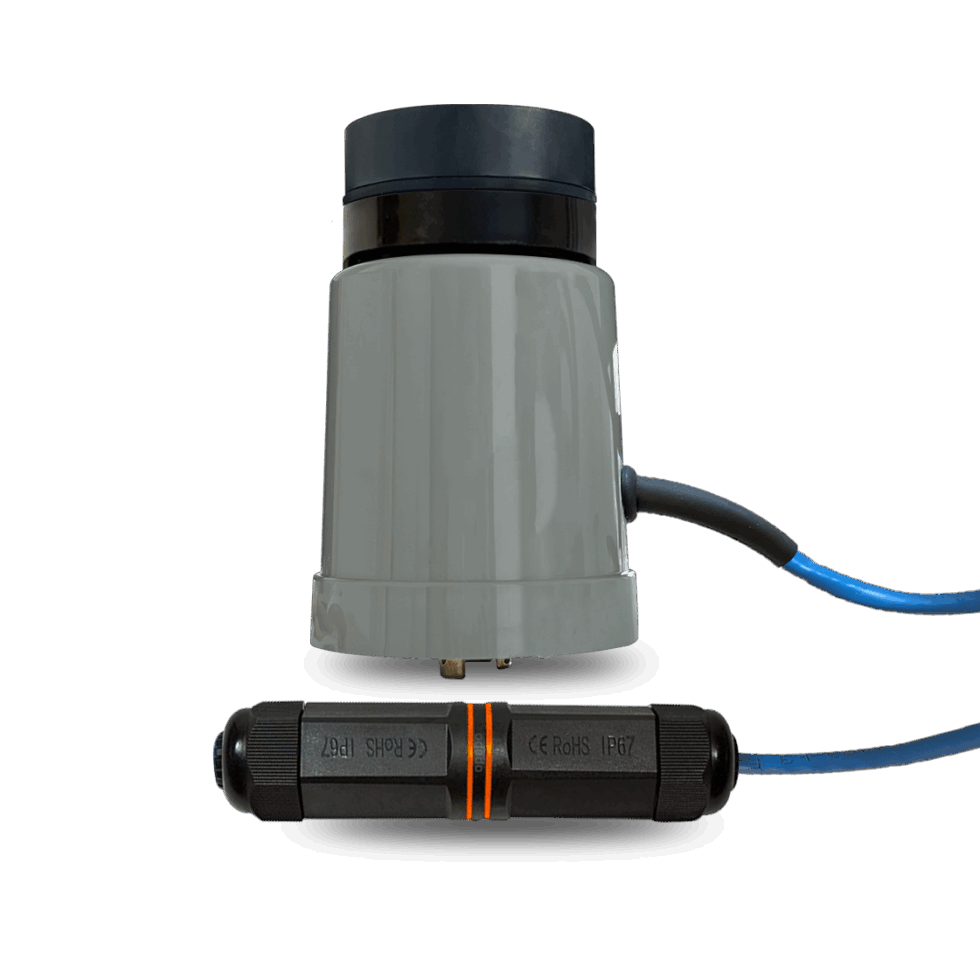

PoE power tap

Features & Benefits of our PoE Power Tap

  • Simple to connect to a wide range of devices requiring PoE power and simple installation with 7-pin ANSI/NEMA socket.
  • Direct powering of a LoRaWAN or similar type base stations from your streetlight ANSI/NEMA sockets/receptacle.
  • Supplied with 1-metre standard RJ45 cable (other lengths available on request).
  • PoE enclosure designed to meet IP65 water and dust-tight rating.
  • Supplied with Cat.6a RJ45 fully shielded cable connector for outdoor base station powering.

Technical Specification

Dimensions

128 mm (H) x 84 mm (W), 5.03” x 3.31”

Warranty

5 years standard

Cable Length

1 meter standard

Power Tap Receptacle

Designed to BS5972 & ANSI C136.41

Connecting Pins

Designed to BS5972 & ANSI C136.10

Operating Temperature

-20° C to +80° C, -4° F to +176° F

Power Tap Enclosure Materials & Sealing

UV stabilised polycarbonate sealed to IP65

Mains Supply

105 to 480 V AC 50/60Hz

Output to Base

45 V - 57 V DC relative to the 0 V

Output Power

38 W (other wattages on request)

Download Specifications PDF

Sectors

Housing Estates

Road & Motorways

Streets

Campuses & Car Parks

Applications

  • Powering LoraWan Base Stations
  • Other Radio Stations
  • Digital Signage
  • Security Camera Base Stations
  • Traffic and Environmental Sensors
  • Public WiFi Hotspots & Hubs
  • Factories & Warehouses
  • Remote Wireless Base Stations

Get in Touch

Looking for flexible and efficient power delivery to your PoE devices? Our PoE Power Tap can deliver just that, with easy installation and reduced cable clutter. Complete the form and one of our team will be in touch to discuss your requirements.
