Westire DC Power Tap
Power Tap
The market’s most versatile 3 & 7-pin NEMA/ANSI outdoor lighting method of connecting an auxiliary load, WiFi or IoT sensors to a streetlight

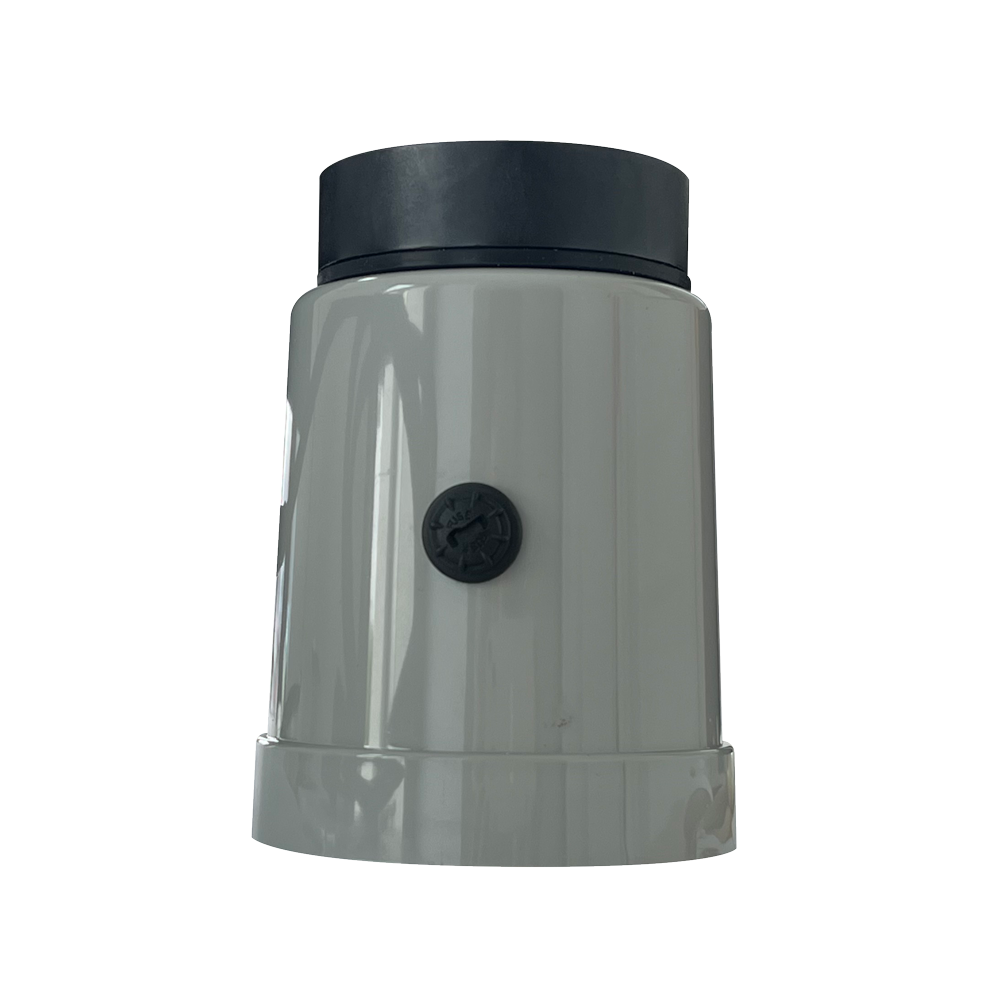

The Westire DC Power Tap provides auxiliary power directly from the ANSI/NEMA socket to third-party equipment such as WiFi or other smart IoT devices, while maintaining the normal operation of the photocell
It is designed to easily insert into a three-or-seven pin ANSI/ NEMA twist-lock socket, either mounted on the canopy of a streetlight or a wall-or-pole-mounting bracket.
A simple, reliable way to deliver auxiliary DC power from streetlights to WiFi, IoT devices, or festive lighting without interrupting photocell operation.
Features & Benefits
-
Direct Powering – 12 V, 24 V, & 48 V DC Smart IoT devices directly from your streetlights ANSI/NEMA socket.
-
Powering – Festive or amenity DC outdoor lighting from streetlights.
-
External easy to access fusing – Protecting the connected DC devices.
-
Cable Length – Supplied with a 2-metre cable as standard; other customisable lengths available on request.
-
Enclosure Protection – Water and dust tight rating of IP65.
-
Optional Mounting – Westire wall or pole mounting bracket available.
Technical Specifications
| Dimensions | 117 mm (H) x 84 mm (W) 4.6" (H) x 3.3" (W) |
| Warranty | 5 years standard |
| Cable Length | 2 meters standard (other lengths available on request) |
| Power TapReceptacle | Designed to BS5972 & ANSI C136.41 |
| Connecting Pins | Designed to BS5972 & ANSI C136.10 |
| Operating Temperature | -20° C to +80° -4° F to +176° F |
| Power Tap Enclosure Materials & Sealing | UV stabilised polycarbonate sealed to IP65 |
| Mains Supply | 85 V - 264 V AC 50/60Hz |
| DC Output Voltage & Current | 5 V - 6 A 12 V - 2.5 A 24 V - 1.3 A |
| Other Output Voltages & Currents | Available on request |
