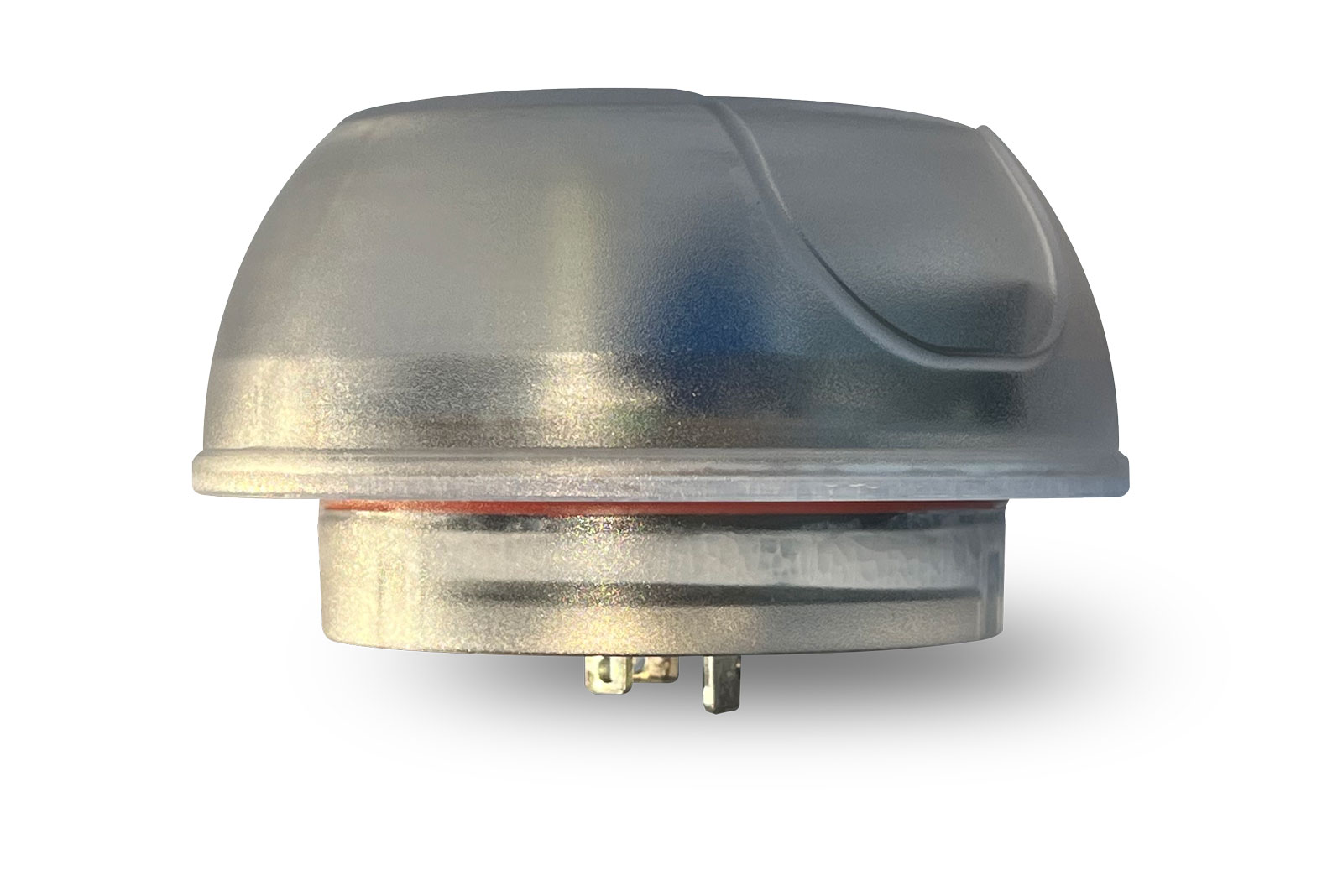

High Accuracy GPS / GNSS Streetlight Control Photocell
GPS-Controlled Photocells
GPS/GNSS photocell for precise dusk-to-dawn, part-night, and dimming control with energy savings.
Accuracy
The GPS/GNSS photocell integrates a colour-corrected silicon ambient light sensor with satellite-based synchronisation. This precise combination ensures highly accurate dusk-to-dawn switching, part-night operation, and dimming control, maintaining long-term timing accuracy without manual recalibration while delivering consistent energy savings and reliable performance.
Longevity
Engineered in the EU with a 15-year design life and backed by an 8-year warranty, the GPS/GNSS photocells are manufactured in-house to meet stringent ANSI and RoHS standards, ensuring long service life and trusted reliability in demanding outdoor environments
We pay more attention than any other photocell designer to the sky’s blue and red zones to ensure negligible sensitivity to infra-red and ultra-violet radiation.
Features & Benefits
-
Built-in GPS – GPS and GLONASS with SBAS receiver, incorporating high-precision map positioning with highly accurate dusk-to-dawn, part-night, and dimming calculation.
-
Programmable Operation – Dusk-on/dawn-off, part-night switch-off, and dimming schedules tailored to your specification.
-
Reprogramming – GPS/GNSS reprogrammable version also available.
-
Self-Correcting Performance – GPS/GNSS synchronisation maintains long-term timing accuracy with no manual recalibration.
-
Energy Efficiency – Reduces power consumption, delivering cost savings and environmental benefits.
-
Daylight Saving Option – Configurable to automatically adjust for seasonal time changes.
-
Reliable Light Sensing – Incorporates the same proven ambient light sensing used across all Westire photocells.
-
Wide Voltage Compatibility – Operates on 110 V – 307 V AC, 50/60Hz, for global deployment.
-
ANSI/NEMA Socket Fit – Designed for standard 3-pin or 7-pin ANSI/NEMA twist-lock sockets.
Technical Specification
| Dimensions | H 62.5 mm × W 112 mm H 2.46” × W 4.40” |
| Receptacle Compatability Type | 3 or 7-pin ANSI /NEMA |
| Photocell Fixing | ANSI/NEMA Twist-lock |
| Warranty | 8 years |
| Mains Supply | 110 V AC to 307 V AC 50/60 Hz |
| Power Consumption | 1.4 W (max) |
| Temperature Rating | -25°C to +70°C -13°F to +158°F |
| IP Rating | IP66 |
| Standards Compliance | Manufactured to comply with RoHS. Designed to meet ANSI C136.10- 2017 standard |
| Light Level | 20:20 Lux (standard, other settings available on request) |
| Switching Ratio | 1:1 (Standard); Other ratios available on request |
| Switching Time Delay | 25 seconds (or as requested) |
| Switching Options | Dusk-to-dawn, part-night. |
| Dimming Options | Multiple dimming options available |
| Ambient Light Sensor | Silicone colour corrected ambient light sensor |
| Time Reference | GPS |
