Westire PoE Power Tap – Power over Ethernet from Streetlights
Power Tap

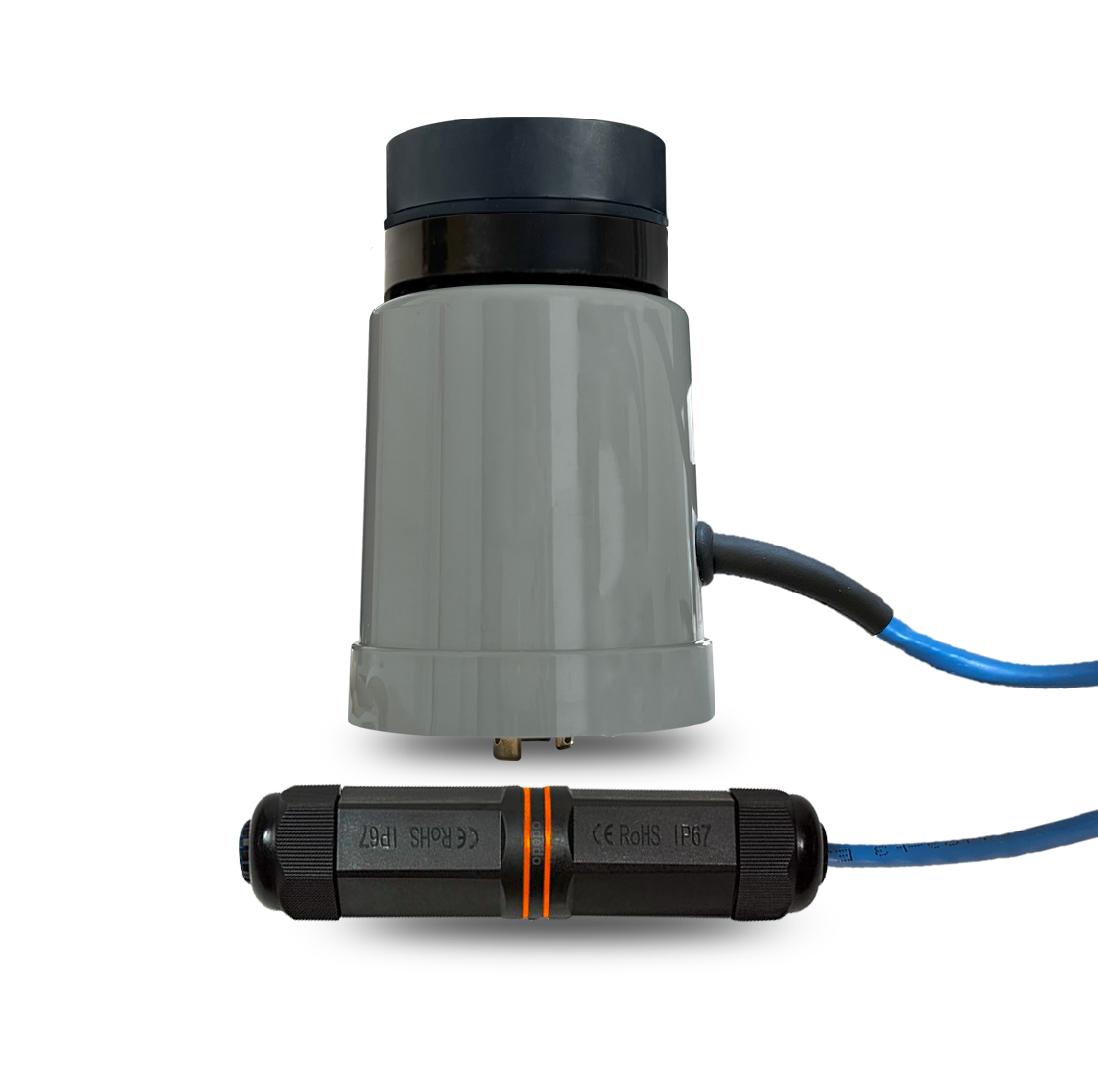

The Westire PoE Power Tap is a versatile 7-pin NEMA/ANSI solution delivering reliable Power over Ethernet from streetlights to LoRaWAN and other base stations.
Wide Power Range
The Westire PoE Power Tap is a single-channel Power Sourcing Equipment (PSE) module designed to provide power to pre-enabled devices across a wide range of power levels, from 15.4W (IEEE 802.3af) up to 75W proprietary power levels. It is aimed at a wide range of applications requiring PSE functionality to deliver PoE power directly from streetlights
Easy Integration
The PoE Power Tap is a self-contained module within the standard Westire Power Tap, requiring only one external component to provide a simple and cost-effective power source for a wide range of Powered Devices (PDs).

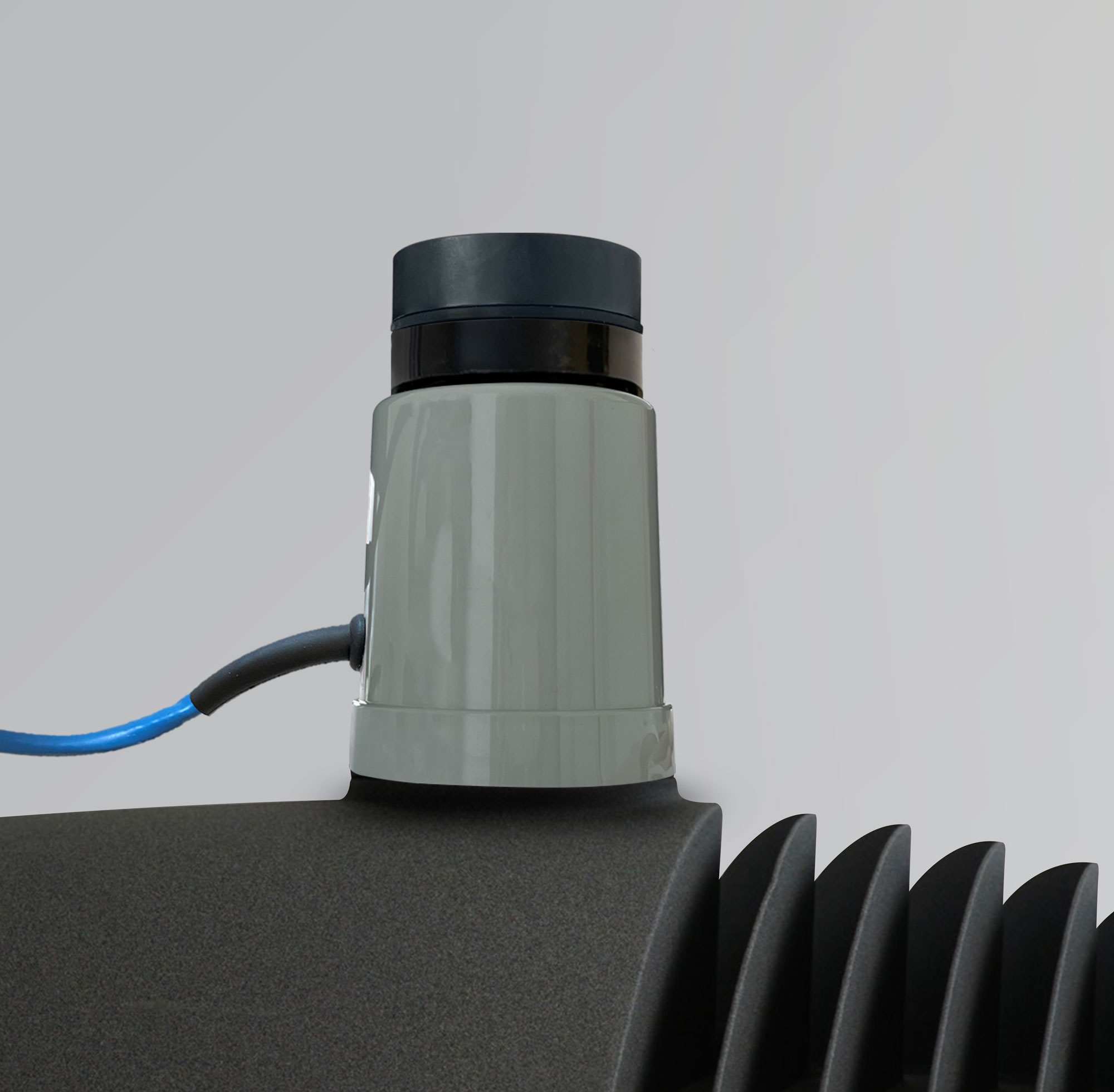

A simple, reliable way to deliver PoE power from streetlights to LoRaWAN or similar base stations, without interrupting photocell operation.
Features & Benefits of the Westire PoE Power Tap
Direct powering of a LoRaWAN or similar type base station from your streetlight ANSI/NEMA sockets
Supplied with 1-metre standard RJ45 cable (other lengths available on request)
PoE enclosure designed to meet IP65 water and dust-tight rating
Supplied with RJ45 Cat.6a fully shielded cable connector for outdoor base station powering
Simple to connect to a wide range of devices requiring PoE power
- Simple installation with 7-pin ANSI/NEMA socket
Applications
Powering of LoRaWAN, PoE-enabled, or similar type base stations from:
- Streetlights
- Campus perimeter and roadway lighting
- Pedestrian and cycleways
- Walls or poles
Why Choose the Westire PoE Power Tap?
-
Reliable auxiliary power from streetlights
-
Supports a wide range of PoE-enabled devices
-
Cost-effective, durable, and versatile
Technical Specifications
| Dimensions | 128 mm (H) x 84 mm (W) 5.03” x 3.31” |
| Warranty | 5 years standard |
| Cable Length | 1 meter standard |
| Power TapReceptacle | Designed to BS5972 & ANSI C136.41 |
| Connecting Pins | Designed to BS5972 & ANSI C136.10 |
| Operating Temperature | -20° C to +80° -4° F to +176° F |
| Power Tap Enclosure Materials & Sealing | UV stabilised polycarbonate sealed to IP65 |
| Mains Supply | 105 to 480 V AC 50/60Hz |
| Output to Base | 45 V - 57 V DC relative to the 0 V |
| Output Power | 38 W (other wattages on request) |
