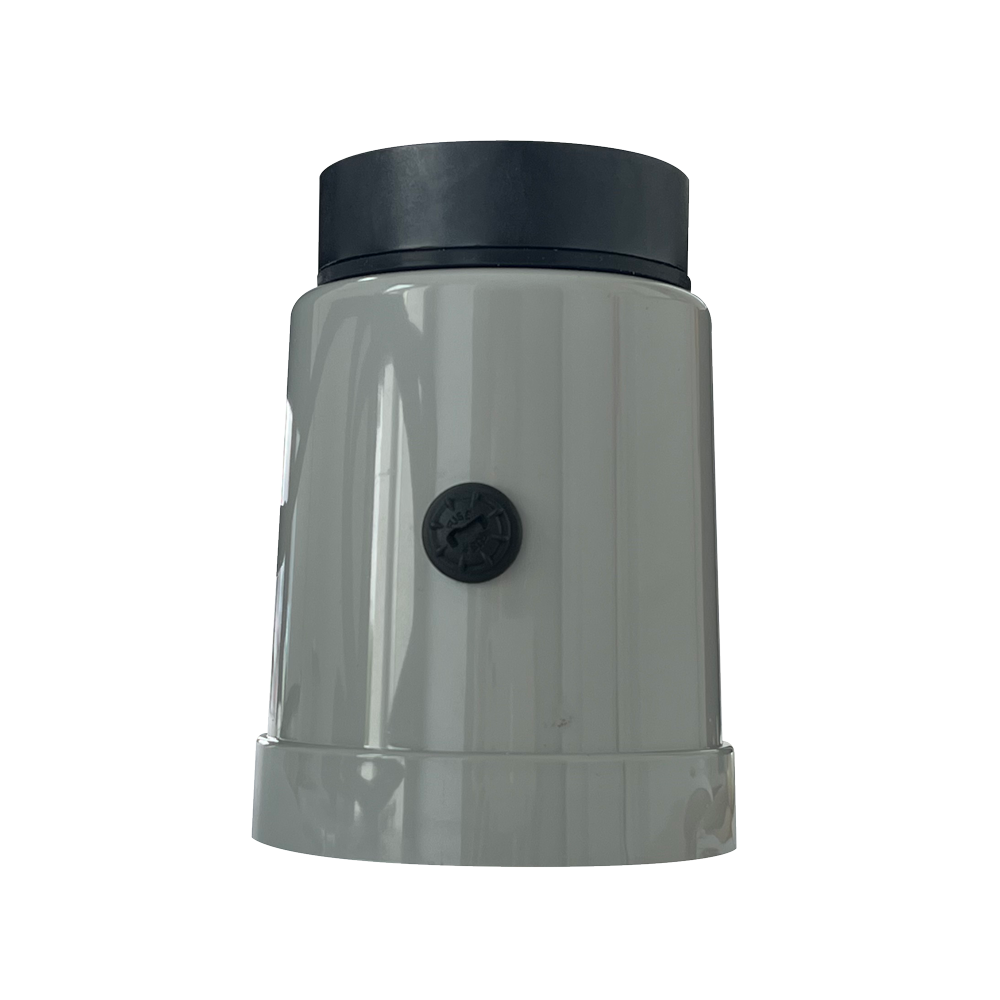

DC Power Tap

Our DC Power Tap is the ideal method of connecting a third-party device through a low-voltage DC power output.

The Westire DC Power Tap provides auxiliary power directly from the ANSI/NEMA socket to devices such as wi-fi access points, CCTV cameras, environmental sensors or other smart IoT devices. It does this all whilst maintaining the normal operation of the photocell.

DC Street Light Power Tap

The ‘plug-and-play’ design means that it can be easily inserted into a 3 or 7 pin ANSI/NEMA Twist Lock socket/receptacle, either mounted on the canopy of a streetlight or a wall-or-pole-mounting bracket.

The DC Power Tap, with 5V, 12V, 24V & 48V options, is the market’s most versatile 3 & 7-pin NEMA/ANSI outdoor lighting method of connecting an auxiliary load, WiFi or IoT sensor to a streetlight, without interrupting photocell or streetlight operation.

Our products are renowned in the industry for their quality and reliability. This is because we pride ourselves on being leaders and innovators and developing products that are designed, manufactured and tested in-house at our Ireland, EU facility. We employ our rich heritage of experience in street light control products to deliver market leading solutions.

Features & Benefits of our DC Power Tap

Direct Powering – 5V 12V, 24V and 48V DC smart IoT devices directly from a street light’s ANSI/NEMA socket.
It can support the temporary, low voltage powering of festive or amenity DC outdoor lighting direct from street lights.
It has external easy to access fusing – which protects the connected DC devices.
It is supplied with a 2-metre cable as standard, with customisable lengths available on request.
Its sealed enclosure protection rating of IP65 protects against water and dust.
It can be supplied as a kit with our wall or pole mounting bracket.

Technical Specification

Dimensions

113 mm (H) x 83 mm (W), 4.45" (H) x 3.27" (W)

Warranty

5 years standard

Cable Length

2 meters standard (other lengths available on request)

Power Tap Receptacle

Designed to BS5972 & ANSI C136.41

Connecting Pins

Designed to BS5972 & ANSI C136.10

Operating Temperature

-20° C to +80° C, -4° F to +176° F

Power Tap Enclosure Materials & Sealing

UV stabilised polycarbonate sealed to IP65

Mains Supply

85 V - 264 V AC 50/60Hz

DC Output Voltage

5 V

DC Output Current

5 A

Other Output Voltages & Currents

Available on request

Download Specifications PDF

Sectors

Housing Estates

Road & Motorways

Streets

Campuses & Car Parks

						Applications
DC Festive lighting
DC CCTV Cameras
DC WiFi Access Points
DC Wireless Equipment
DC Smart City IoT Devices
DC Smart City Pollution Sensors
DC Noise Sensors
DC Emergency EV Charging
DC Holiday Park Temporary Lighting
DC Town & City Street Environmental Sensors
DC Temporary Signage
